Overview
Product overview

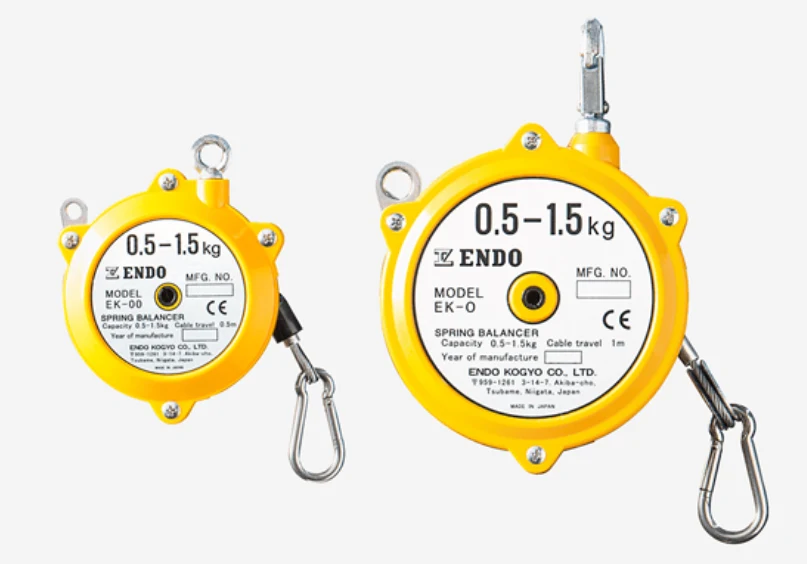

The ENDO EK-0 is a lightweight spring balancer designed to suspend small tools such as electric screwdrivers. Its spring tension supports the tool’s weight, helping reduce operator effort during repetitive handling and prolonged use. Typical applications include assembly lines, electronics assembly, and repetitive workstation tasks.
The EK-0 has a load capacity of 0.5–1.5 kg, a working stroke of 1.0 m, and a wire rope diameter of 3.0 mm. The unit weighs approximately 0.5 kg. Its compact design allows installation above the workstation, keeping tools conveniently within reach.
Include the weight of the tool and any moving accessories when checking the load capacity. Confirm that the required movement is within the working stroke, and adjust the spring tension according to the suspended load. Follow the manufacturer’s instructions for installation and operation.
| Model | Capacity (kg) | Stroke (m) | Wire rope diameter (mm) | Mass (kg) | How to adjust spring tension | Fall arrest device | Drum lock device |
|---|---|---|---|---|---|---|---|
| EK-00 | 0.5～1.5 | 0.5 | 2.0 | 0.2 | Ratchet | － | － |
| EK-0 | 0.5～1.5 | 1.0 | 3.0 | 0.5 | － | － |
