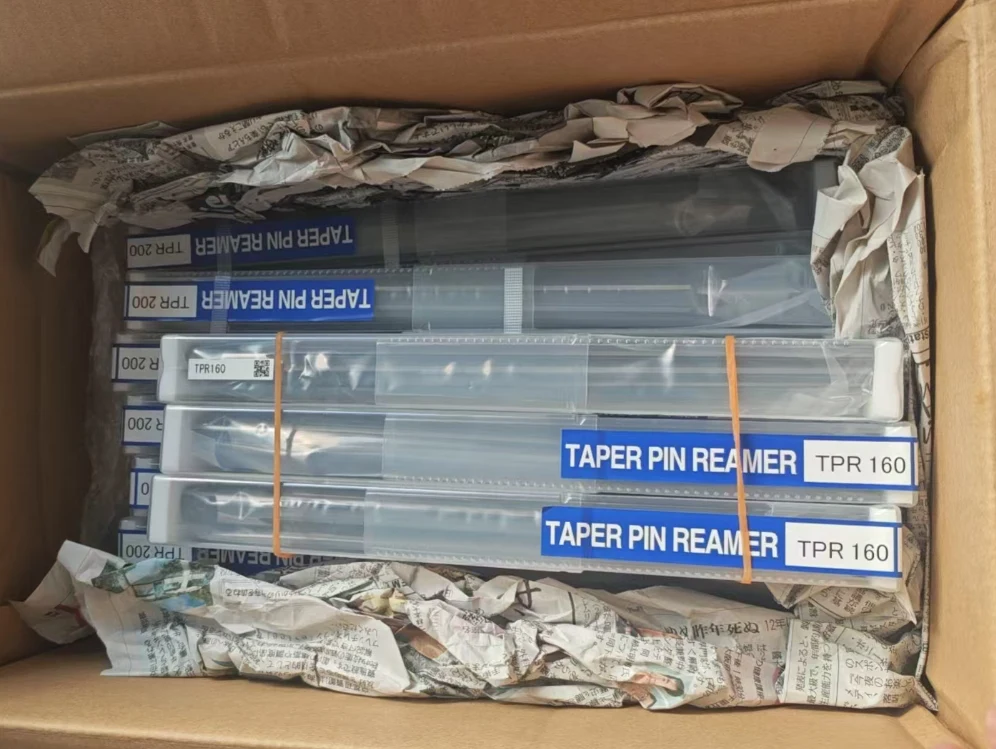

The TPR160 features a nominal cutting diameter of 16.0 mm, a large-end diameter of 20.4 mm, and a tip diameter of 15.8 mm. It has a flute length of 230 mm, an overall length of 280 mm, an 18 mm shank, and eight cutting edges.
Select the reamer according to the taper pin dimensions, hole depth, and assembly requirements. Prepare a suitable pilot hole and reaming allowance, and choose cutting conditions and lubrication to suit the workpiece material. Control the finished size by checking the required pin seating depth.
